Nature vs. Man or Man vs. Nature?
Relations between population trends and natural processes
Bill Leeman
Dale Sawyer
Arthur Few
Weather & Climate

Natural and Man-made Disasters
Earth Alert - What's happening on the planet

Nightview of United States from space -bright spots = major population centers
Return to top of page

Smoothed population density distribution for North America
Return to top of page

A view of the 'rigid' tectonic plates, showing surface topography
Return to top of page

Schematic diagram showing major types of plate boundaries
Return to top of page

Distribution of active volcanoes in the world
Return to top of page

Case studies

General Volcano Information

United States Volcanoes

Return to top of page

Weather & Climate Links

Return to top of page

Earthquake Links

Return to top of page


Tectonic forces within the Earth produce local accumulations of strain that may be released abruptly in the form of seismic energy. Earthquakes result from rapid release of stored elastic strain in the lithosphere, usually in the form of sudden movement of portions of the Earth's crust along faults. Comprehensive earthquake information, definitions, and examples are available at several WWW sites - some outstanding ones are listed below. This page is intended to provide a quick overview and links to particularly useful WWW resources.

Background information

To understand seismicity it is important to consider the physical state of rocks in the solid Earth.

Changes in the physical properties of rocks with increasing temperature and pressure (i.e., increasing depth in the Earth) result in decreasing viscosity (a parameter that measures 'resistance to flow') and a transition from 'brittle' to 'ductile' deformation. That is, the outer part of the Earth deforms mainly by fracture, whereas rocks in the deep crust and mantle undergo plastic flow or creep over geologic time scales. The outer (ca. 50-100 km ) layer of the Earth behaves as more or less rigid 'plates' (lithosphere) that can 'drift' on the deeper, less viscous interior (mantle) that is undergoing slow convection.

The boundary between lithosphere and mantle is believed to reflect the change in rheology which is temperature sensitive. Thus, it is a thermal boundary layer (ca. 1300°C isotherm). It may also be a compositional boundary in some places, but in general the lithosphere comprises the crust (oceanic or continental) and the uppermost mantle which is considered to be 'peridotitic' (olivine-pyroxene rock). Composition of the crust is variable and reflects the geologic processes attending crust formation - essentially mafic (basalt-gabbro) in oceanic regions and sialic (roughly 'andesitic') in continental regions. The crust (especially continental) is lithologically heterogeneous and variable in age (up to ~4 billion years old in the oldest regions).

Upwelling mantle convection results in heat transfer toward the surface, which can 'thin' the rigid lithosphere (rift zones), promote melting of the rising mantle rock (mid-ocean ridges or 'hot-spot' volcanoes), and create topographic highs away from which the lithospheric plates tend to drift. Likewise downwelling is associated with subduction of relatively older and cooler oceanic plates.

Interactions between these moving plates, at their margins, create deformation (tectonism) of three major types:

  1. extension - plates move apart with the intervening space filled by new igneous material (e.g., mid-ocean ridge basalts)
  2. convergence - plate collide resulting in subduction (unterthrusting) of one plate, intense deformation and uplift (mountain building), and a particular type of magmatism (volcanic arcs)
  3. strike-slip - horizontal motion as plates slide by one another (San Andreas); note that because plate margins are not usually straight, friction and obstructions result in significant earthquake activity

More elaborate discussions of Plate tectonics, interesting animations, etc. can be found at the following sites:

Earthquakes and Seismicity

Seismic Waves

Two types of waves are generated during an earthquake, body waves and surface waves.

Body waves travel through the Earth, emanating from the earthquake focus, or 'hypocenter' (e.g., a ruptured fault). Body waves are useful in determining the surface location above the earthquake source, or 'epicenter', and for determining the amount of energy released, or magnitude. Body waves can be further classified as either:

Surface waves travel along or near the Earth's surface, generally arriving later than body waves. Because they travel along the surface, their effects on society may be significant, including structure collapse, mass movement (landslides), disruption of utilities, and secondary effects such as fires.

Energy released from an earthquake may be recorded as motions of the Earth's surface by a seismograph; a seismogram is a written or digital recording of these motions. Examples of actual seismograms vary in complexity due to dispersal of seismic energy via reflections at velocity discontinuites and refraction (bending) as waves pass through velocity gradients within the Earth.

Locating Earthquakes

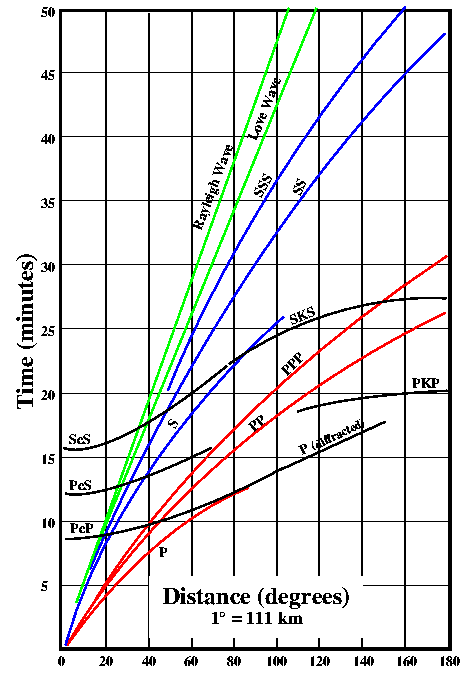

The surface point above the hypocenter is known as the epicenter. As the distance from an earthquake increases, the arrival time difference between the p-wave and s-waves ('S-P difference') increases proportionately. Thus, epicenter locations can be determined by triangulation using a travel-time curve and data recorded at three or more seismic stations.

Hands-on examples of calculating location (as well as Richter magnitude) for real earthquakes can be found at the very cool Virtual Earthquake WWW site. Give it a try, and become a virtual seismologist!

Estimating Intensity of Earthquakes

Strength of earthquakes (intensity) can be estimated from the maximum amplitude of the P wave, which is proportional to seismic energy released in small to moderate earthquakes. In the Richter scale, the assigned magnitude increases by one unit for every tenfold increase in the recorded amplitude (implicity, all seismometers must be calibrated to give identical responses). In fact, the energy released by earthquakes increases more rapidly than amplitude of the seismic wave - about a factor of 40 for each magnitude step! Fortunately, the energy of larger earthquakes is more widely distributed in space and time than for smaller ones, such that surface hazards do not increase at this high rate.

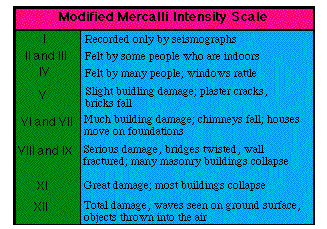

Strength of earthquakes can also be measured using the Modified Mercalli Intensity Scale, which is a qualitative scheme based on extent of damage. Because surface damage is most intense near the epicenter and generally decreases with distance, for any given earthquake this scale may vary widely with geographic location.

Seismic moment (Mo), defined as the product of [rock shear strength]*[surface area of fauls]*[average displacement], is a more consistent measure of earthquake size (energy release) than is magnitude; a magnitude scale based on this parameter (Mw = 2/3*log[Mo] - 10.7) is now used widely as it shows near-linear variation with energy release. This measure can be used to predict such things as size of earthquake for a given fault geometry and displacement.

Distribution of Earthquakes

Global Seismicity

Seismicity in the United States

Seismicity and Plate Tectonics

Earthquake Case Studies

Seismicity associated with strike-slip faults

Seismicity associated with subduction zones

Seismicity associated with volcanoes

Seismic Hazards

Risks due to earthquakes can be evaluated in terms of probability of events, likely magnitudes, and potential damage. Main hazards include: ground motion, faulting and ground rupture, aftershocks, fires, landslides, liquifaction, changes in ground level, tsunamis, flooding.

General information on hazards

Basic information on earthquake hazards

Hazards assessment

Study questions

Useful discussion and study and review questions can be found in such textbooks as Natural Disasters, P.L. Abbott (1996).

You should also explore other WWW resources listed below and examine the EQ facts lists site.

To test your understanding of earthquake hazards, try to develop appropriate hazard mitigation plans for various real world stiuations (see below).

Also, try taking a Quiz to test your EQ sense.

Related web pages:

Return to top of page

-----LAST MODIFIED: 29 Sept 98
-----BY: Bill Leeman

Sea-floor crust age variations - new crust is forming at spreading centers (red)
